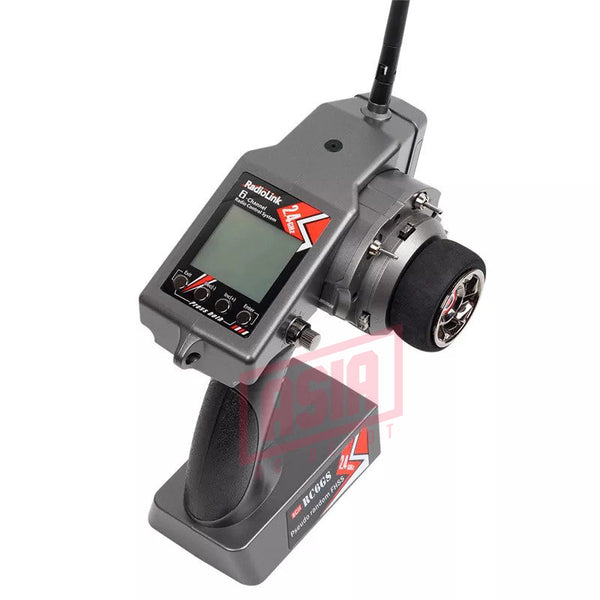

Radiolink has been long in the RC world and known for making premium and good quality radio system at an affordable price. This latest RC6GS V2 comes with 6 channels control, a LCD display, 10 models storage capability, remote monitor battery voltage and more!
Brand : Radiolink
Model :RC6GS V2
Specification

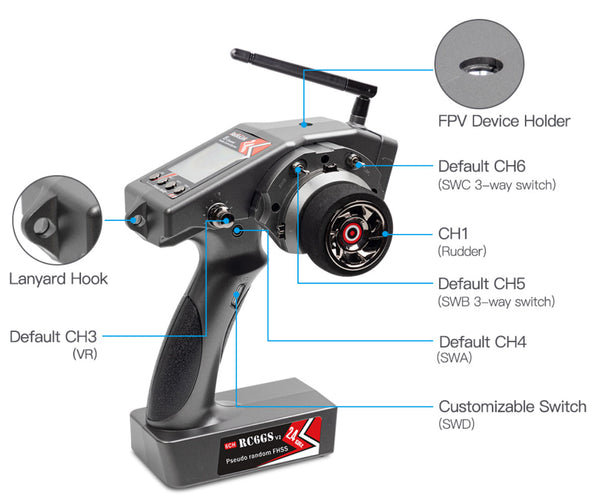

Channel : 6
For Use : Car, Boat, Tank, Tracked Vehicle
Modulation mode : GFSK
Spread spectrum : FHSS 6/7 Channels Frequency Hopping Spread Spectrum
Memory storage : 10 models
Antenna length : 106mm
Control distance : ground control distance around 600 meters depending on location
LCD screen : 128*64 resolution LCD with backlight
Transmitter operating voltage : 4.8-15V, 4X 1.5V AA or 2S-4S Lithium battery
Transmitter operating current : 80-120mA
R6FG/R6F operating voltage : 3.3-10V
R6FG/R6F operating current : 30MA
RF power : <20dbm
Low voltage alert: yes(when lower than 4.6V), can be adjusted when using 2s-4s battery
Frequency : 2.4Ghz ISM band (2400MHz-2483.5MHz)
Channel resolution : 4096 steps, 0.5us each steps
Work current : 80-120mA
Compatible Receivers : R7FG, R6F, R8EF, R8FM, R6FG, R8F, R6F and R4FGM
Product dimension
Radio : 213*117*115.5mm

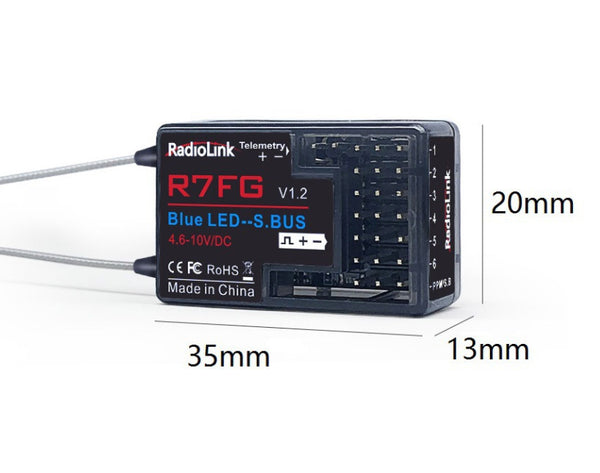

Receiver : 35*20*13mm
Specification
Channel : 6
For Use : Car, Boat, Tank, Tracked Vehicle
Modulation mode : GFSK
Spread spectrum : FHSS 6/7 Channels Frequency Hopping Spread Spectrum
Memory storage : 10 models
Antenna length : 106mm
Control distance : ground control distance around 600 meters depending on location
LCD screen : 128*64 resolution LCD with backlight
Transmitter operating voltage : 4.8-15V, 4X 1.5V AA or 2S-4S Lithium battery
Transmitter operating current : 80-120mA
R6FG/R6F operating voltage : 3.3-10V
R6FG/R6F operating current : 30MA
RF power : <20dbm
Low voltage alert: yes(when lower than 4.6V), can be adjusted when using 2s-4s battery
Frequency : 2.4Ghz ISM band (2400MHz-2483.5MHz)
Channel resolution : 4096 steps, 0.5us each steps
Work current : 80-120mA
Compatible Receivers : R7FG, R6F, R8EF, R8FM, R6FG, R8F, R6F and R4FGM
Product dimension
Radio : 213*117*115.5mm
Receiver : 35*20*13mm
Package includes

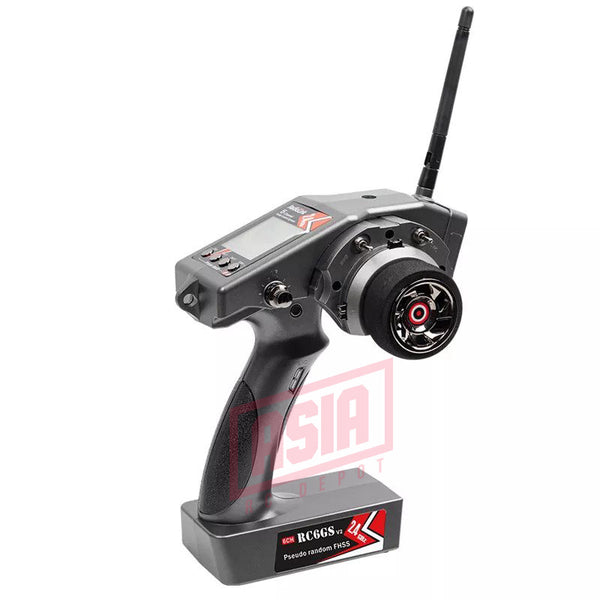

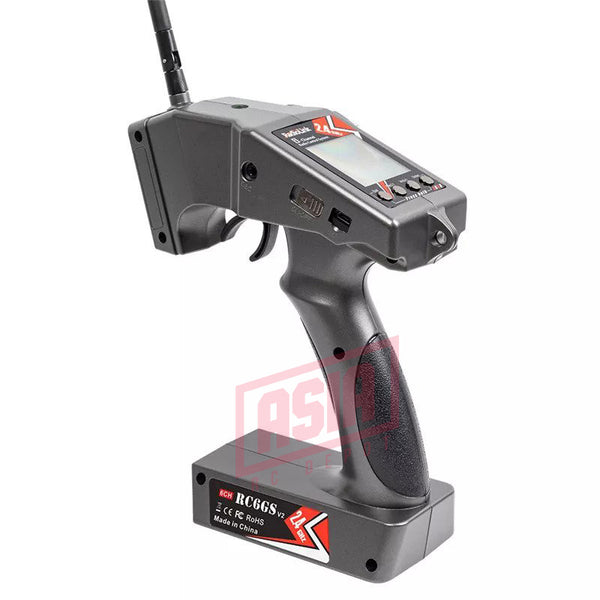

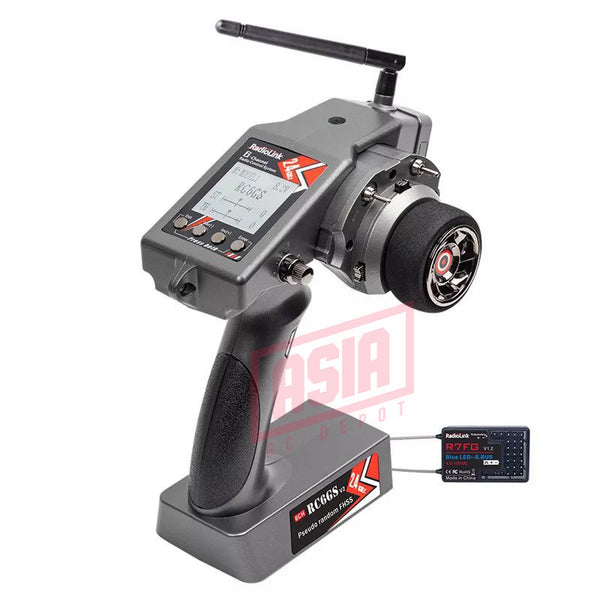

1X RC6GS V2 Transmitter

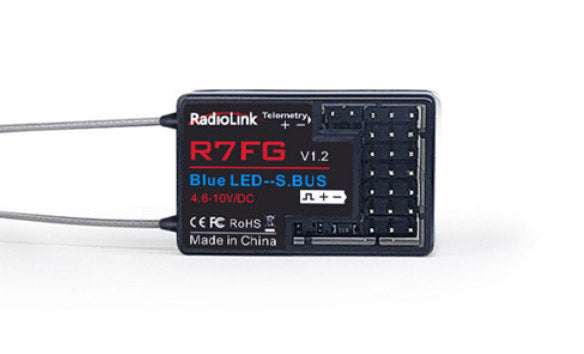

1X R7FG V1.4 Receiver
1X Instruction Manual

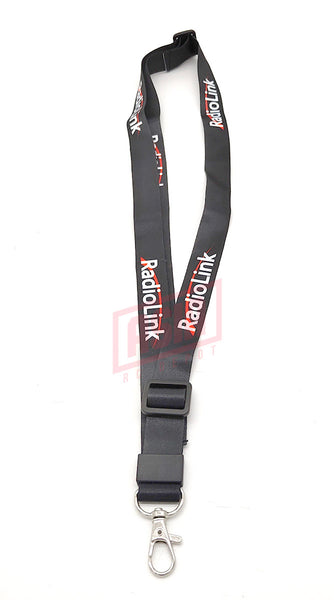

1X Neck strap

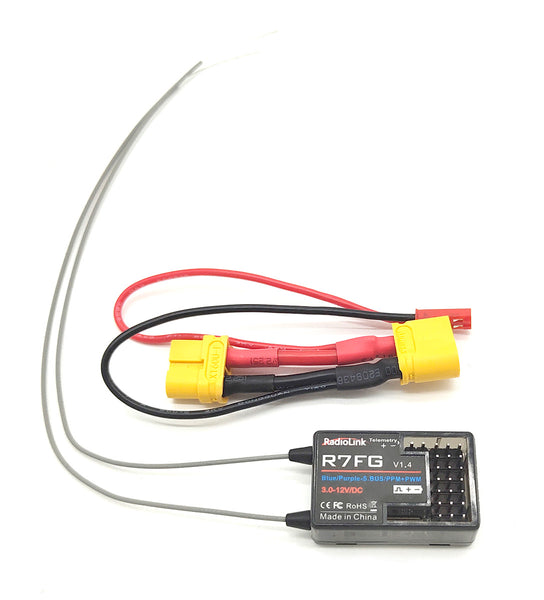

1x XT60 female to male passthrough connector
1X RC6GS V2 Transmitter
1X R7FG V1.4 Receiver
1X Instruction Manual
1X Neck strap
1x XT60 female to male passthrough connector
Note :
- Radio is latest V2 version
- Actual receiver is the latest V1.4.
- Radio requires own 6x AA batteries
Purchase extra receivers
- R7FG : Click here
- R6FG : Click here
Instruction Manual : Click here
